macOS High Sierra Patcher Tool for Unsupported Macs

*This utility is provided to anyone free of charge, however if you'd like to donate, you can do so here:
Questions or comments? Feel free to contact me at collinmistr@gmail.com. Please take a look at the FAQ located at the bottom of this page as well.


Requirements:

- Early-2008 or newer Mac Pro, iMac, or MacBook Pro (MacPro 3,1 and 4,1, iMac 8,1 and 9,1, MacBook Pro 4,1, 5,1 5,2, 5,3, 5,4, and 5,5)

- Late-2008 or newer MacBook Air or Aluminum Unibody MacBook (MacBookAir 2,1, MacBook 5,1)

- Early-2009 or newer Mac Mini or white MacBook (Macmini 3,1, MacBook 5,2)

- Early-2008 or newer Xserve (Xserve 2,1, Xserve 3,1)


Machines that ARE NOT supported:

- 2006-2007 Mac Pros, iMacs, MacBook Pros, and Mac Minis (MacPro 1,1 and 2,1, iMac 4,1, 5,1, 5,2, 6,1 and 7,1, MacBook Pro 1,1, 2,1, and 3,1, Macmini 1,1 and 2,1)

-- The 2007 iMac 7,1 is compatible if the CPU is upgraded to a Penryn-based Core 2 Duo, such as a T9300.

- 2006-2008 MacBooks (MacBook 1,1, 2,1 3,1 and 4,1)

- 2008 MacBook Air (MacBookAir 1,1)


-- Note: Make sure SIP is disabled on the system you intend to install High Sierra on. If it's not or you're unsure, just boot into your Recovery partition of your currently installed copy of OS X, open Terminal, and run "csrutil disable". Please also note that SIP MUST remain disabled for as long as you run High Sierra. You will be warned and prompted to re-disable it if it does somehow become enabled. It is important that you refrain from resetting the system's PRAM for any reason, as that will re-enable SIP.


Things you'll need:

- A copy of the macOS High Sierra Installer App. This can be obtained from the Mac App Store using a machine that supports High Sierra, or by using the built-in downloading feature of the tool. In the Menu Bar, simply select "Tools > Download macOS High Sierra..."


Download macOS


-- Alternatively, you can download a copy here.

- A USB drive that's at least 8 GB in size

- A copy of the tool - Download here (Current version: 2.2.6)

-- View changelog and download older versions here



Known issues:

- Unsupported WiFi modules in some systems. Macs that use the Broadcom BCM4321 WiFi module will not have functional WiFi when running High Sierra. A fix for this is to open up your machine and install a compatible WiFi card. Machines affected include some MacPro3,1, MacBook5,2, MacBookPro4,1, iMac8,1, Macmini3,1, and MacBookAir2,1 systems. Please note that not all these machines will have an unsupported card, this is just a list of machines known to have shipped with that card in some configurations.

-- You can find out whether or not you have an unsupported card by opening System Profiler (About this Mac>System Report...), and clicking on WiFi under the Network section. Take note of the value listed for "Card Type".

IDs that DO NOT work under High Sierra:

- (0x14E4, 0x8C)
- (0x14E4, 0x9D)
- (0x14E4, 0x87)
- (0x14E4, 0x88)
- (0x14E4, 0x8B)
- (0x14E4, 0x90)

Any ID not listed, such as (0x14E4, 0x8D), is a supported card, and will work perfectly fine under High Sierra.
WiFi ID
- Trackpad (MacBook5,2 affected only). The trackpad in the MacBook5,2 isn't fully supported in High Sierra. While it works and is fully usable, High Sierra detects it as just a standard mouse, preventing you from changing some trackpad-oriented settings.



How to use:

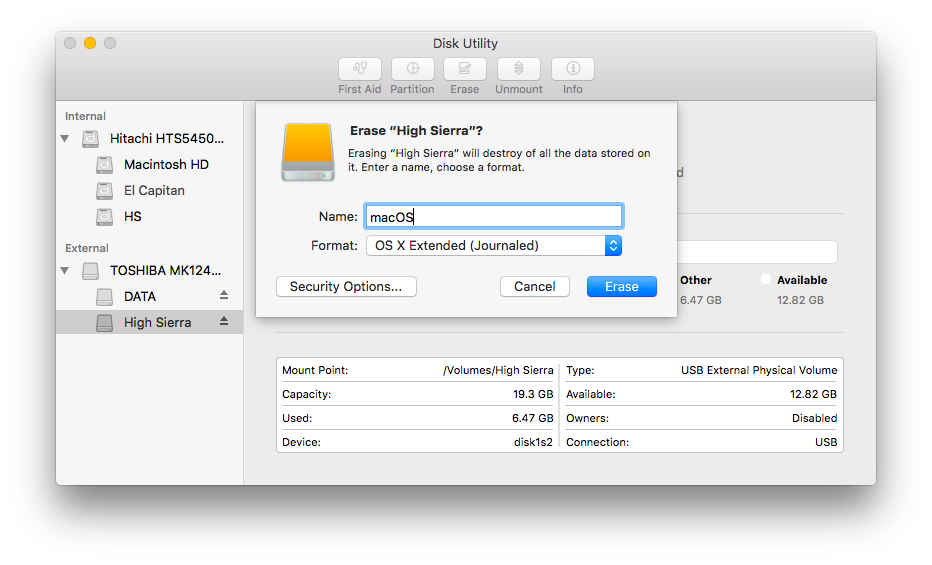

1. Insert your desired USB drive, open Disk Utility, and format it as OS X Extended (Journaled).
step1

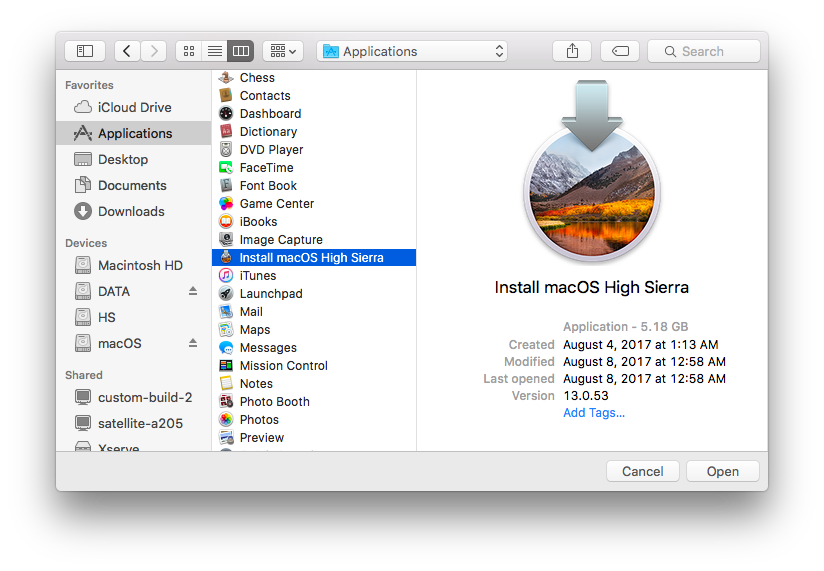

2. Open the "macOS High Sierra Patcher" tool, and browse for your copy of the macOS High Sierra Installer App.
step2

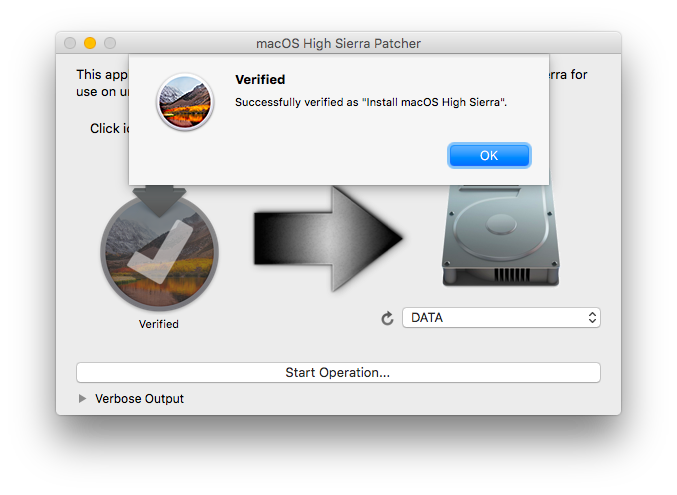

*Ensure that the tool successfully verifies the app.
step3

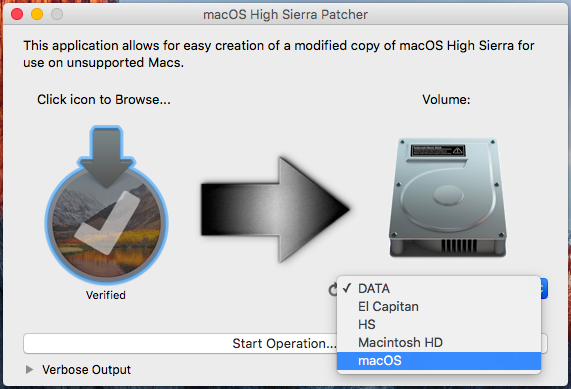

3. Next, select your USB drive in the Target Volume list, and click "Start Operation."


step4

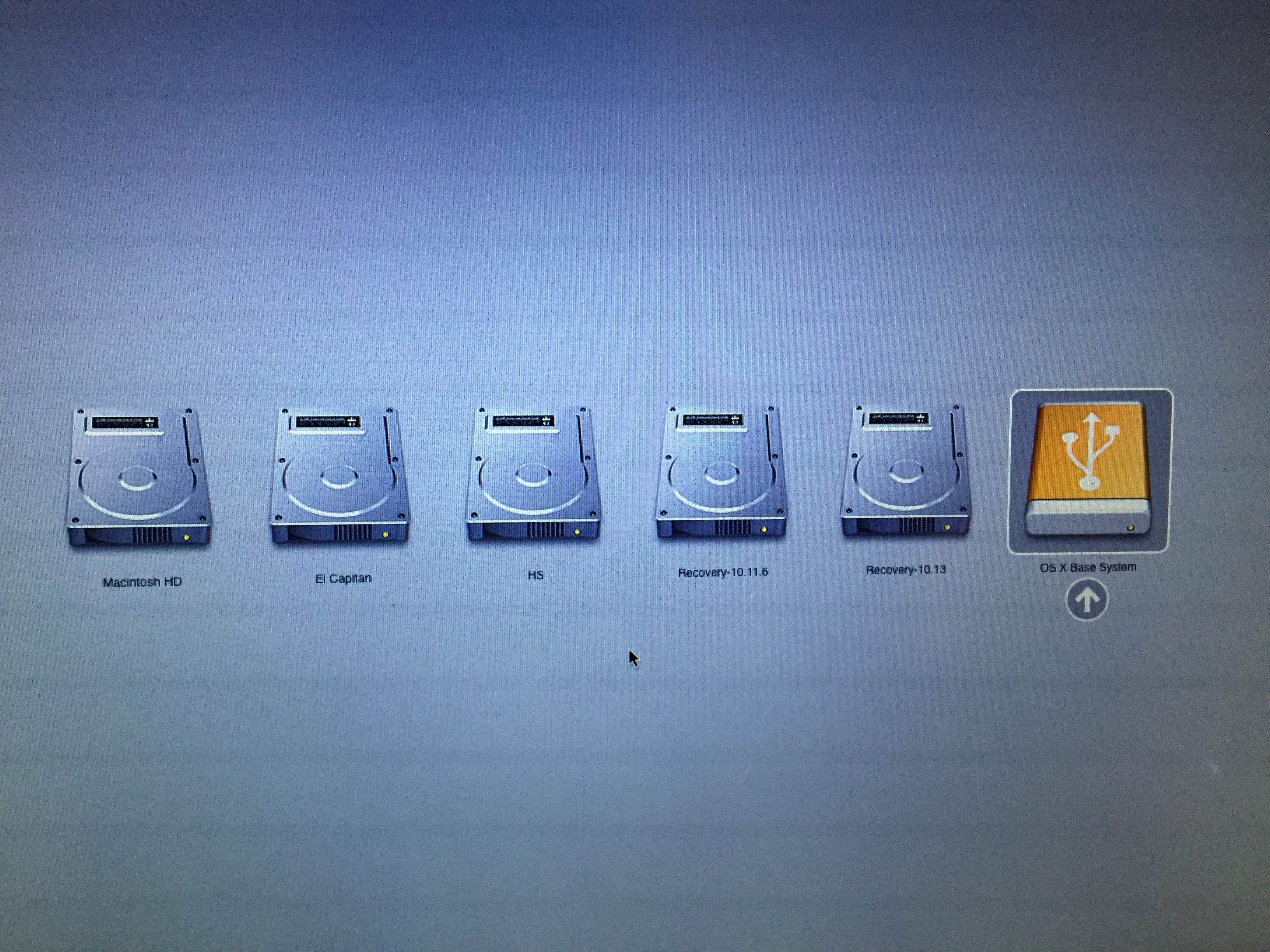

4. When the operation completes, boot your target unsupported Mac off the USB drive you just created by holding down the Option key while turning on the machine, and selecting the drive.


step5



Note: Only perform steps 5 and 6 if you intend to do a clean install. Otherwise, you can simply skip these steps and install to your volume containg a previous version of OS X, and it'll do an in-place upgrade.

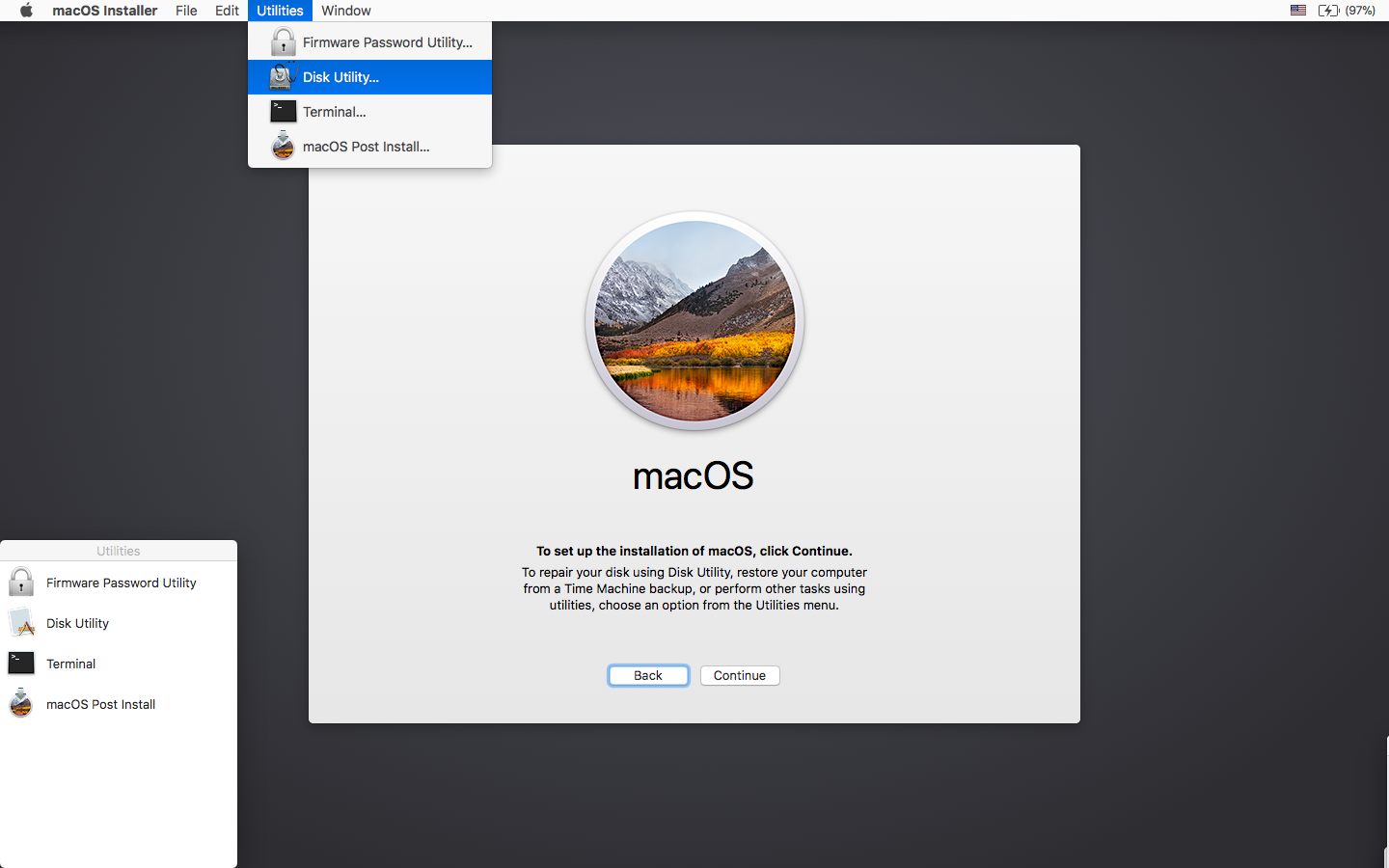

5. When the installer boots, open Disk Utility from the Utilities menu, or by double-clicking it in the Utilities window on the bottom left corner of the screen.

step6

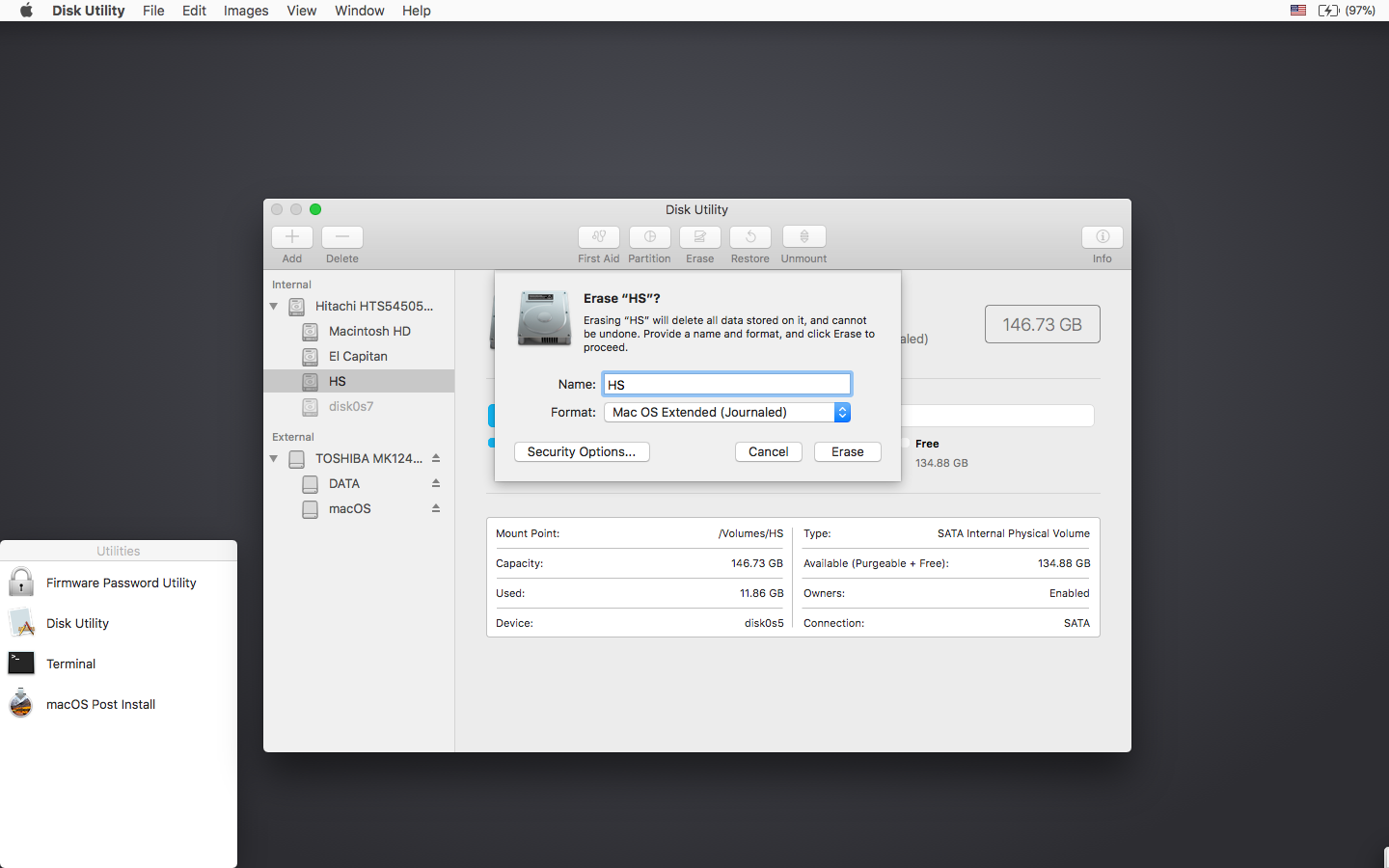

6. Select the disk or partition you want to install on, and erase it, ensuring to use either Mac OS Extended (Journaled), or APFS as the filesystem type. If formatting an entire drive, ensure GUID is selected.
-- Please note that if you use APFS, you will not have a bootable Recovery partition.
-- It is recommended that you only use APFS if the target drive is an SSD.

step7

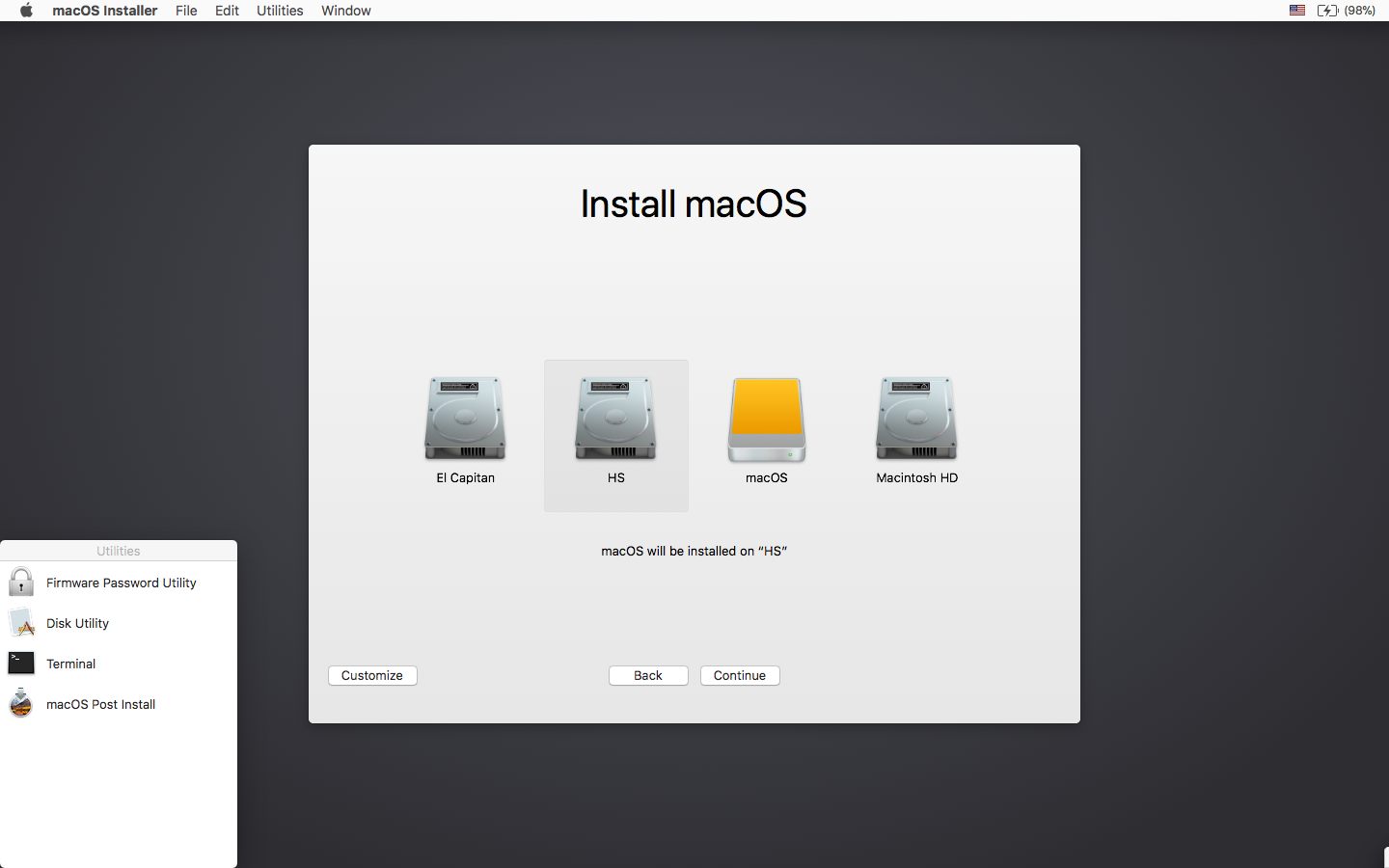

7. Install macOS normally onto the desired volume.

step8

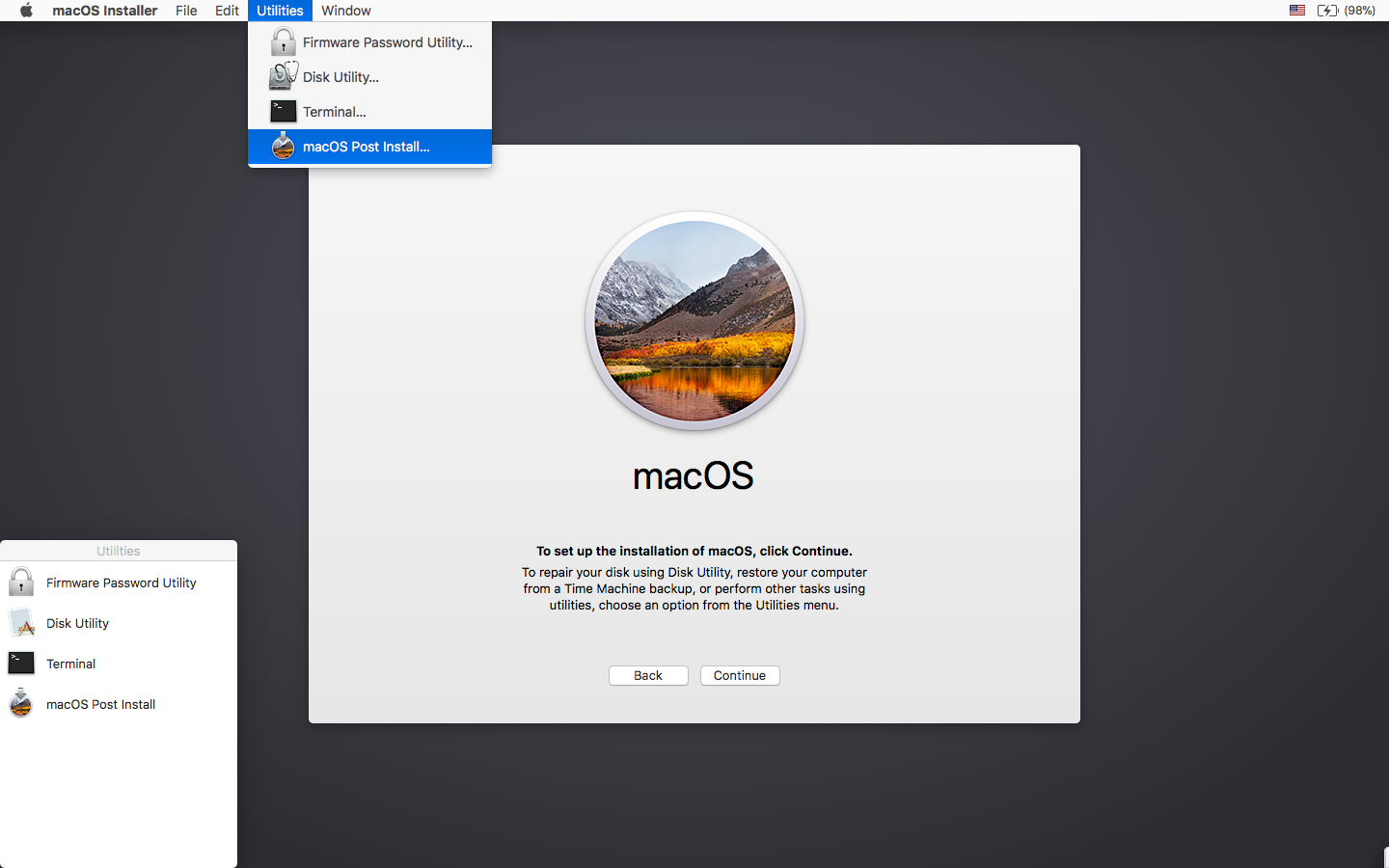

8. When the install completes, reboot back onto the installer drive. This time, open the "macOS Post Install" application.

step9

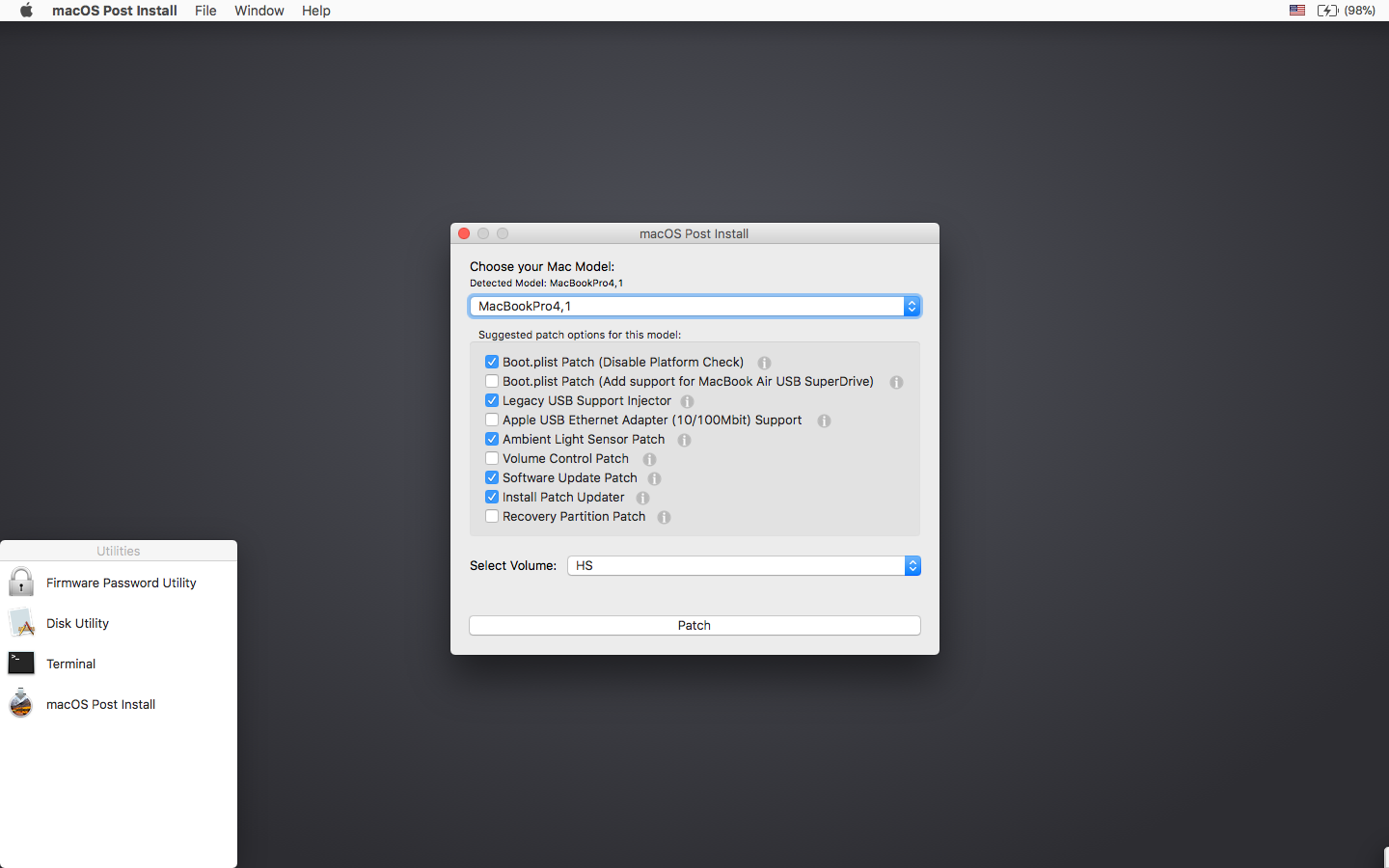

9. In the application, select the Mac model you are using. The optimal patches will be selected for you based on the model you select. You can also select other patches of your choosing.
-- The "i" button next to each patch will show more details about the respective patch.

Step 10

10. Select the volume you have just installed macOS High Sierra on, and click "Patch." When it finishes patching, click "Reboot". It may sit there for a few moments rebuilding caches before rebooting.
-- If for some reason the system fails to work correctly after rebooting, boot back into your installer drive, run the post install patch again, and select "Force Cache Rebuild" before rebooting. This isn't necessary under most circumstances.

step11

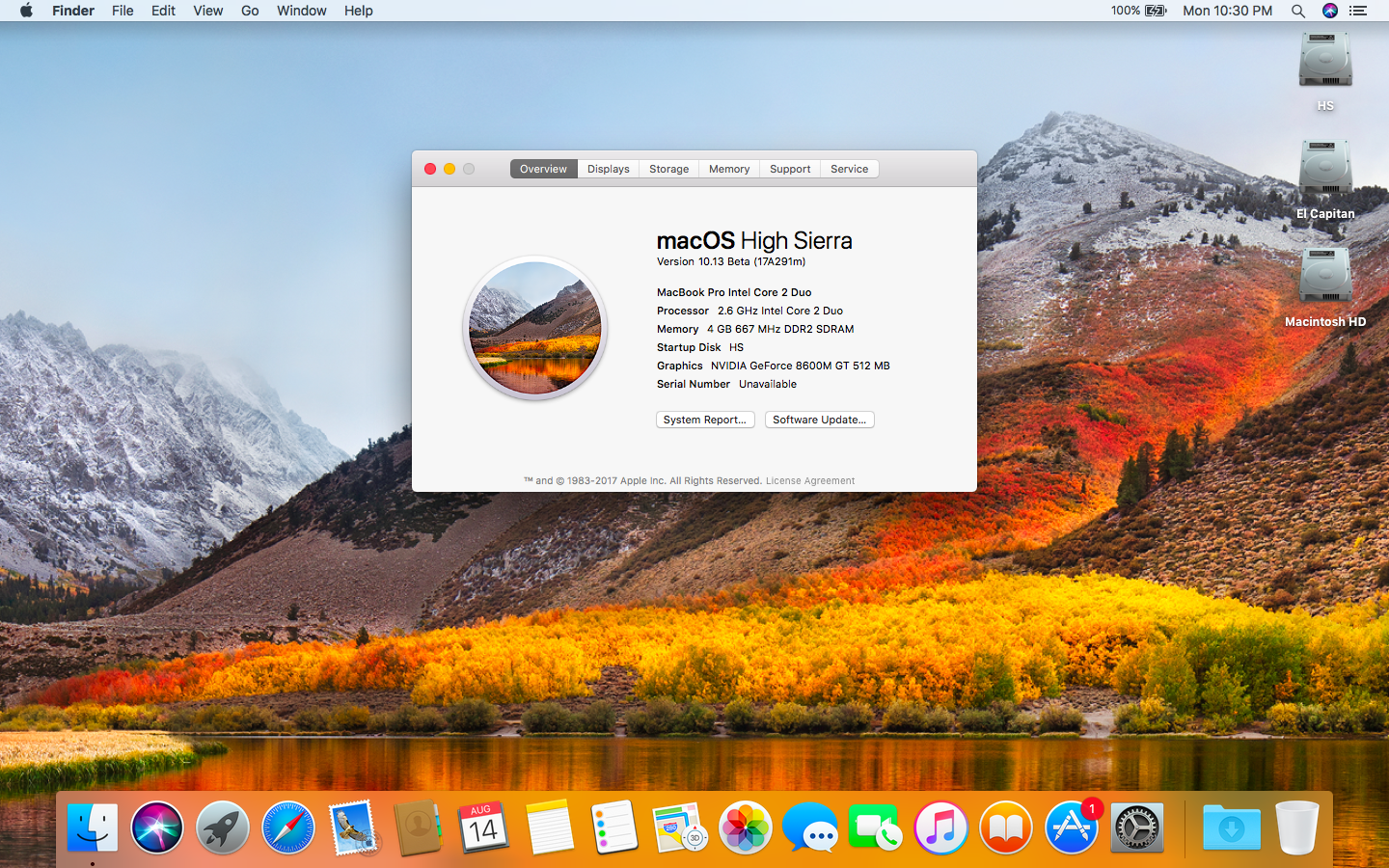

11. When it reboots, it should now boot into a fully working copy of macOS High Sierra.

step12

Additional Info:

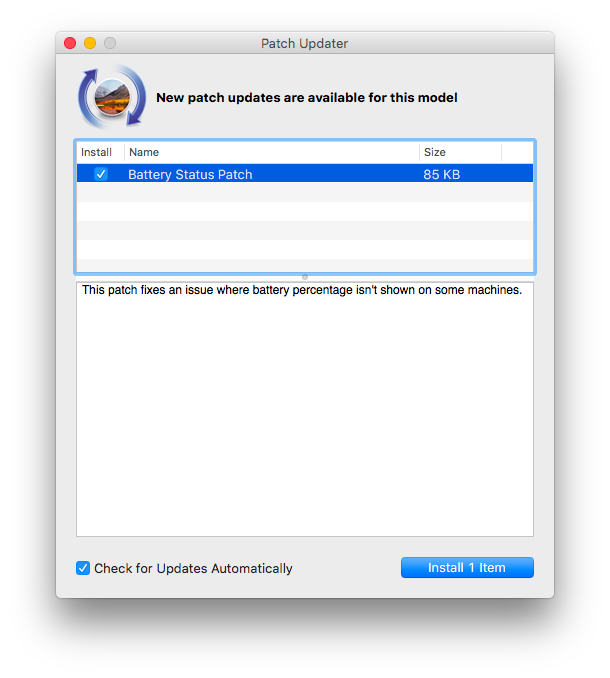

- If selected in the macOS Post Install tool, your High Sierra install will have a program named "Patch Updater" located in your /Applications/Utilities folder. This program will alert you when new updates to patches are available for your machine, and will prompt you to install them. If you do not have Patch Updater installed, but would like it, you can download and run the script found here to do so.
Patch Updater
Updates

System updates, such as 10.13.1, should install normally if "Software Update Patch" was selected in the macOS Post Install tool, or installed using the Patch Updater program. If for some reason updates aren't showing up, or you did not apply the patch, you can install it manually using the script found here.

FAQ:

Q: The tool created the USB drive successfully, but when booting, the progress bar hangs a bit more than half way.
A: Check your copy of the Install macOS High Sierra App. If you're using the latest version of the tool, you must be using the latest version of the Install macOS High Sierra App. Version 1.1 of the patch tool and older support older versions of the installer app.

Q: The patch tool gives me errors, such as "Error copying files...".
A: Check to make sure your USB drive is writeable. Try re-formatting it, or just try a different USB drive.

Q: The patch tool gives me a "Mounting Failed" error
A: Check to make sure your Install macOS High Sierra App is the correct one. It should be around 5GB in size. If you used the "Skip App Verification" option, you have most likely selected an invalid app that doesn't contain the necessary files.

Q: I cannot open my copy of Install macOS High Sierra with the patch tool.
A: If you downloaded the copy linked above, it is distributed inside a DMG file. You must open this file (mount it) to access the Install macOS High Sierra App you need to select.

Q: I don't see my hard drive partition in the installer screen or in the post-install tool.
A: Make sure FileVault is disabled, or use the instructions found here to unlock it manually using Terminal.

Q: I get a "NO" symbol when starting up after successfully installing High Sierra.
A: Make sure you have run the post-install patch on the correct volume, as detailed above in steps 8-10.

Q: I get a "NO" symbol when starting up from the patched USB drive
A: Check the supported/not supported list at the top of this page. Ensure your machine is in the supported list.

Q: My iSight camera doesn't work after installing High Sierra
A: Make sure you properly remove (using the program's uninstaller, not by simply dragging the application to the Trash) all virtual machine software installed on your machine, such as VirtualBox, VMWare, etc.

Q: I get "NSURL" errors when trying to update my machine or use the App Store
A: This is usually the result of having an invalid CatalogURL set. To revert to stock, simply run "sudo softwareupdate --clear-catalog" in Terminal, and then run the software update patch script located above.
